A few weeks ago we delivered the last of the Plyboo Millwork to the Casa Q site. Last week, while delivering other millwork, we were able to see the site carpenters finishing up the install. It’s great to see it finally come together on site. We’re looking forward to seeing it again after the trades finish the final touches in the building.
Unloading the Mailbox Surround
Bringing the Mailbox Surround inside - a tight fit through the door.
Wall Panel Bundled up - placed for scale.
The first look at the Lobby installed - The trades are still onsite.
Looking over details
2nd Floor Bulletin Board is wrapped up!
We've been pushing through the sanding, finishing and assembly on the first floor pieces. Everything looks great!
Fitting the base on the bench
1/4 Quirk Detail at Bench
Scuffing the sealed bench parts
Bench Finally in Finishing - The Chocolate color looks great!
Q Panel in Finishing

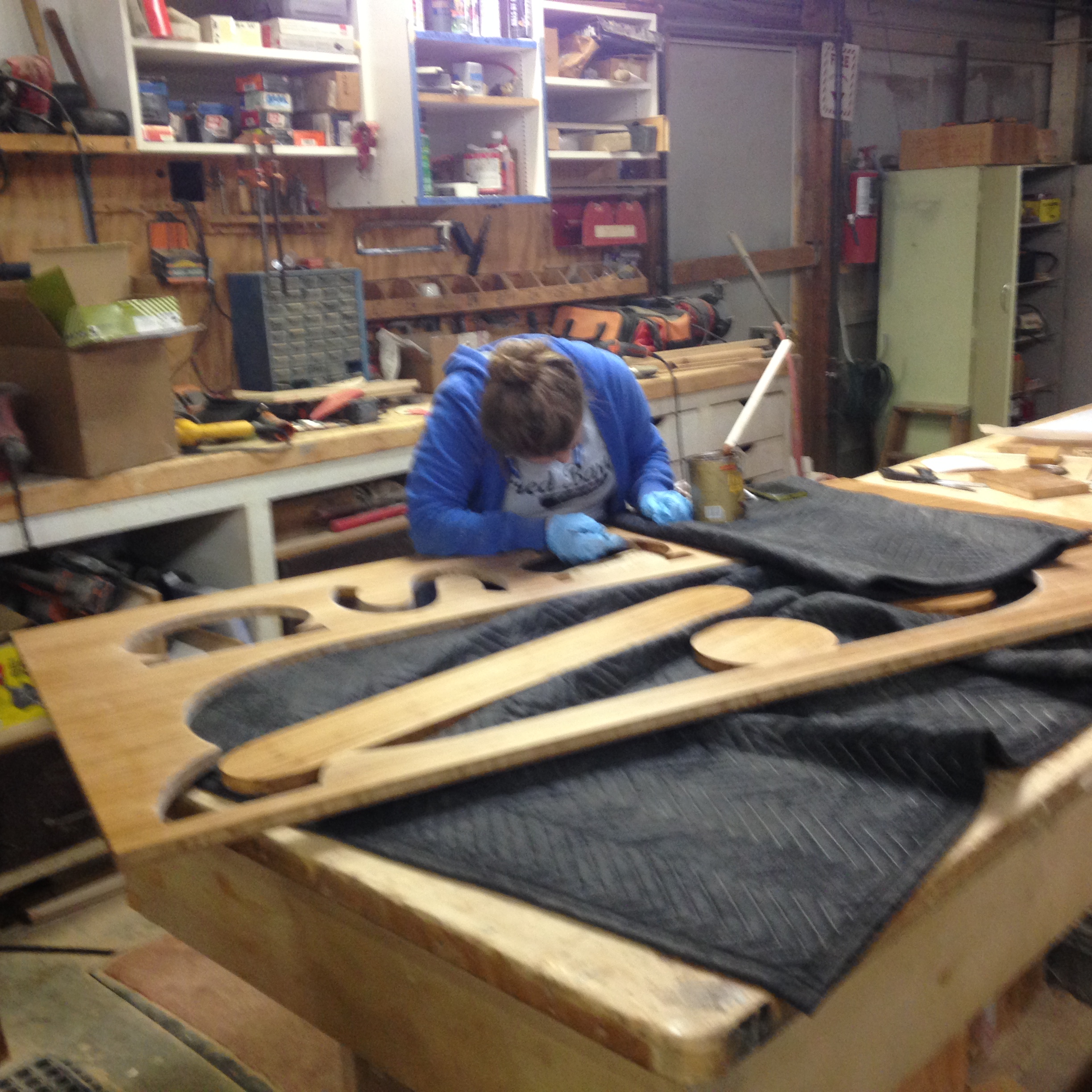

Finishing the letters by hand
Staining
Scuff - Stain - Wipe

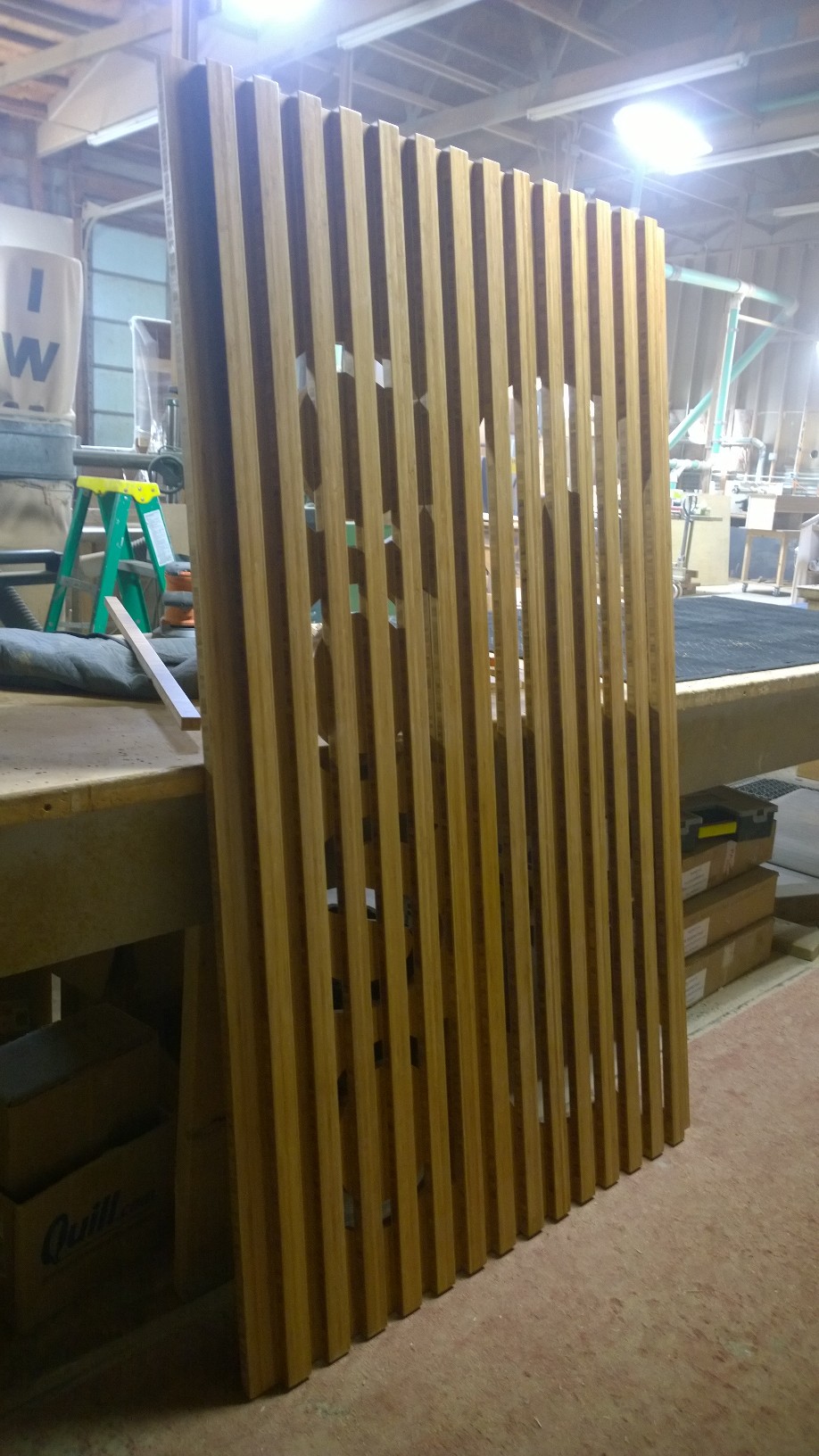

Slats are Set
Mailbox Surround After Finishing
Q Panel Finished & Attached to Mailbox Surround
Since our last update, we’ve completed the fabrication of all Plyboo elements. This post focuses on the Second Floor Message Center. We received approval on all finishes from the architects and have started assembly and finishing.
Routing for Tight-Joint Fastners
Ready To Glue the Return Panel
Preparing the seam at Second Floor Message Center
Second Floor Return Panel Assembled
Second Floor Upright with cleat system in place
Second Floor Message Center Assembled
Sealer Applied - scuffing and preparing for top coat
Our extra shop help is perfect for scuffing in those hard-to-reach places
Lower Portion in our spray booth

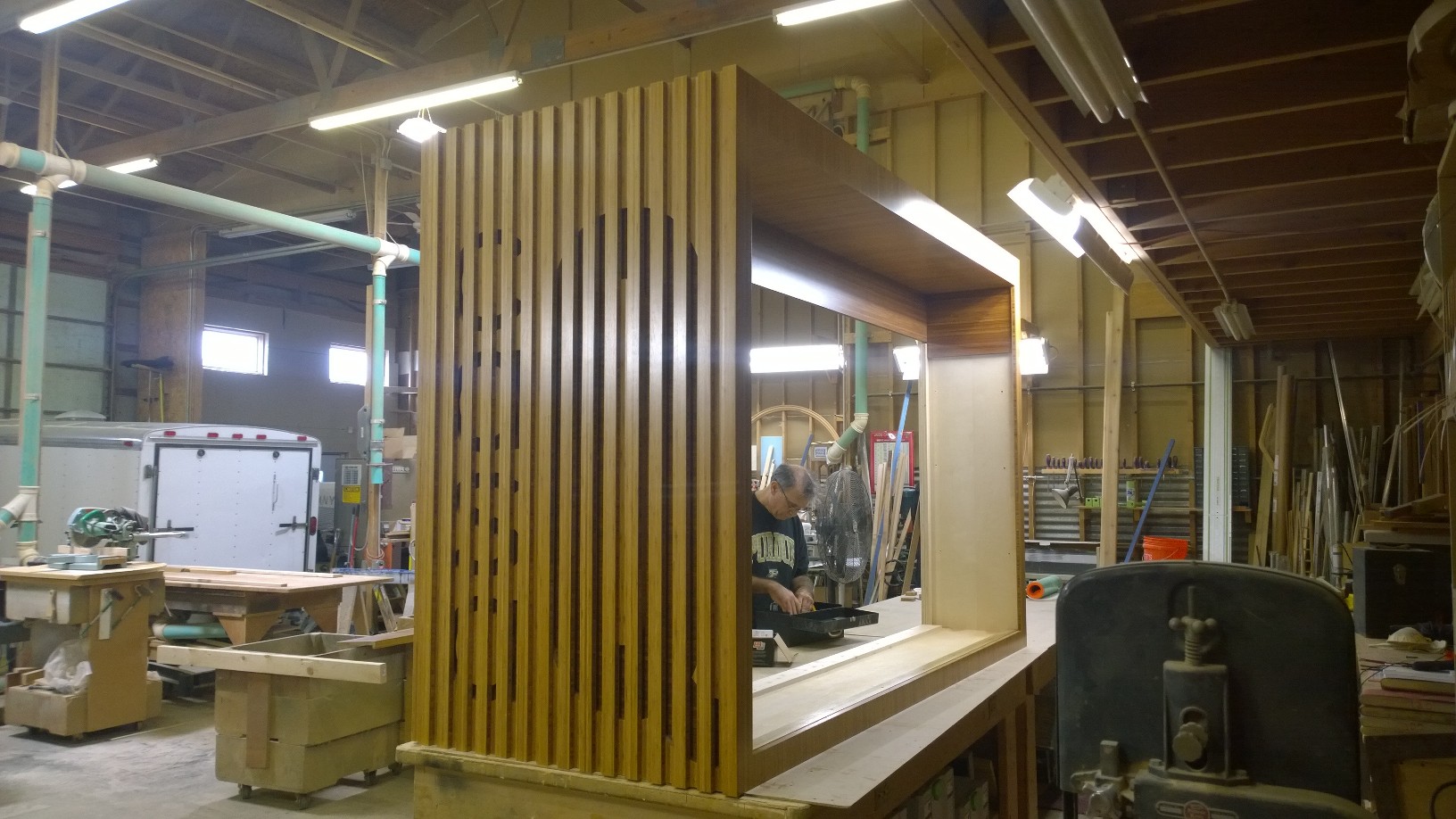

Finished & Assembled - Now to dis-assemble and wrap for delivery
Last week we began fabrication on the 1st floor bulletin board and began to assemble parts for the mailbox surround and 2nd floor message center. All the pieces are coming together nicely and we’re preparing finish samples for architect approval.
Don Gluing the dominoes for an extra-long panel

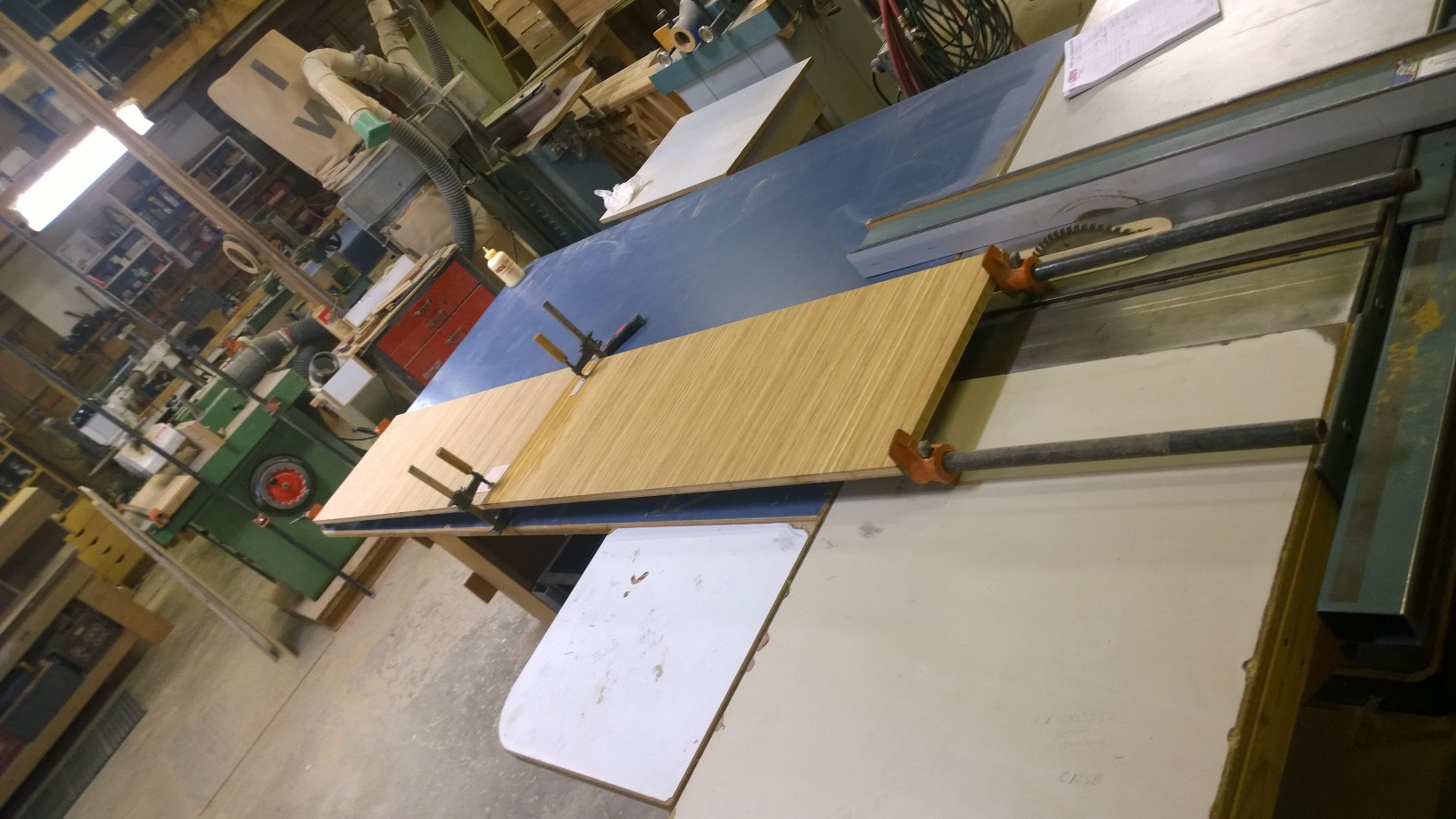

Extra Long Amber Panel Glued and Clamped - This piece is for the Mailbox Surround
Cutting 1st fl. Bulletin Board Miters with our Festool Track Saw
Setting Biscuits at 1st fl. Bulletin Board Miters

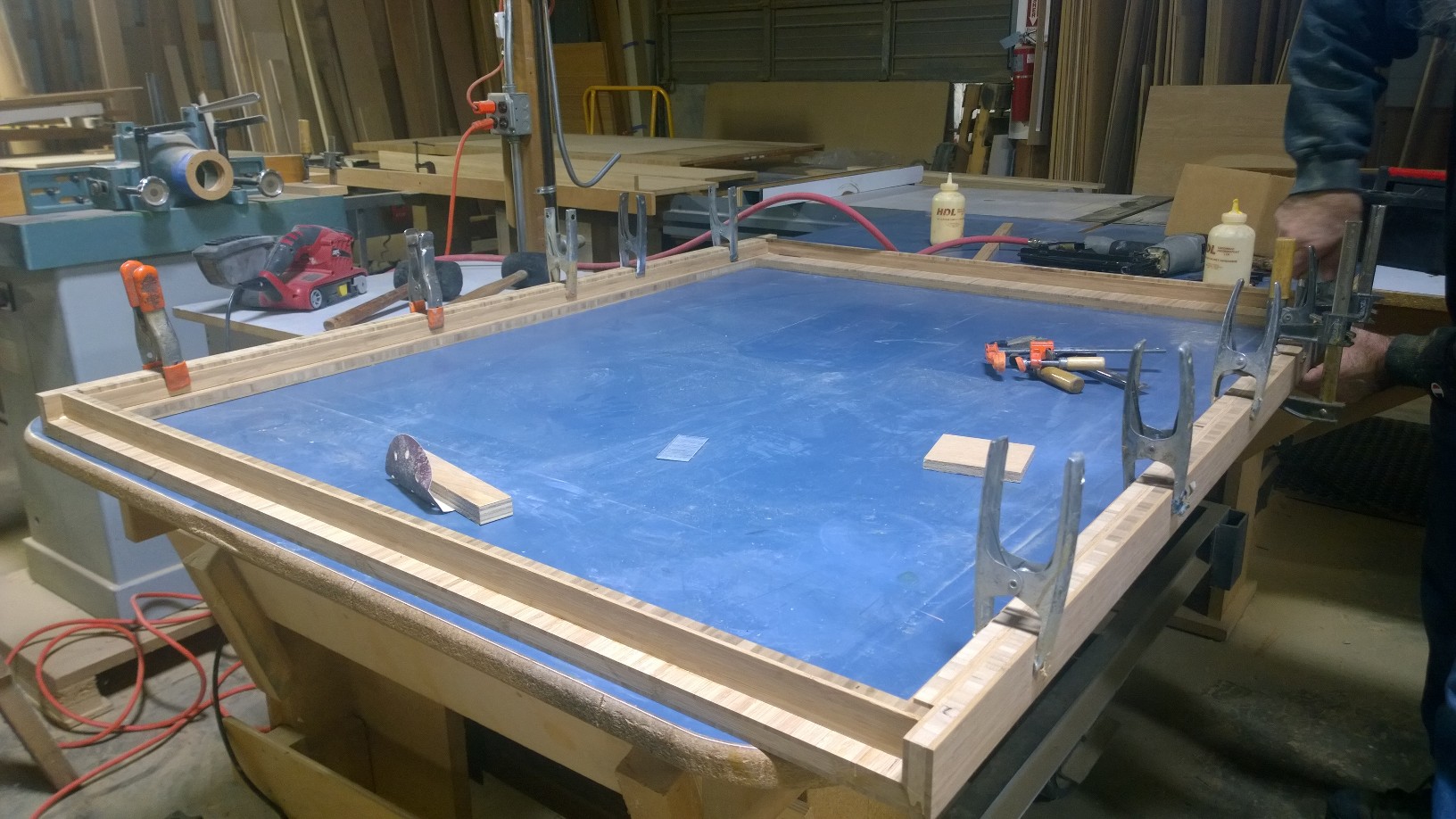

Clamping the 1st fl. Bulletin Board Together
Spring Clamps hold the Glued Returns at the 1st fl. Bulletin Board Frame
Unrolling the Cork
1st Floor Bulletin Board - Assembled and ready for Finishing

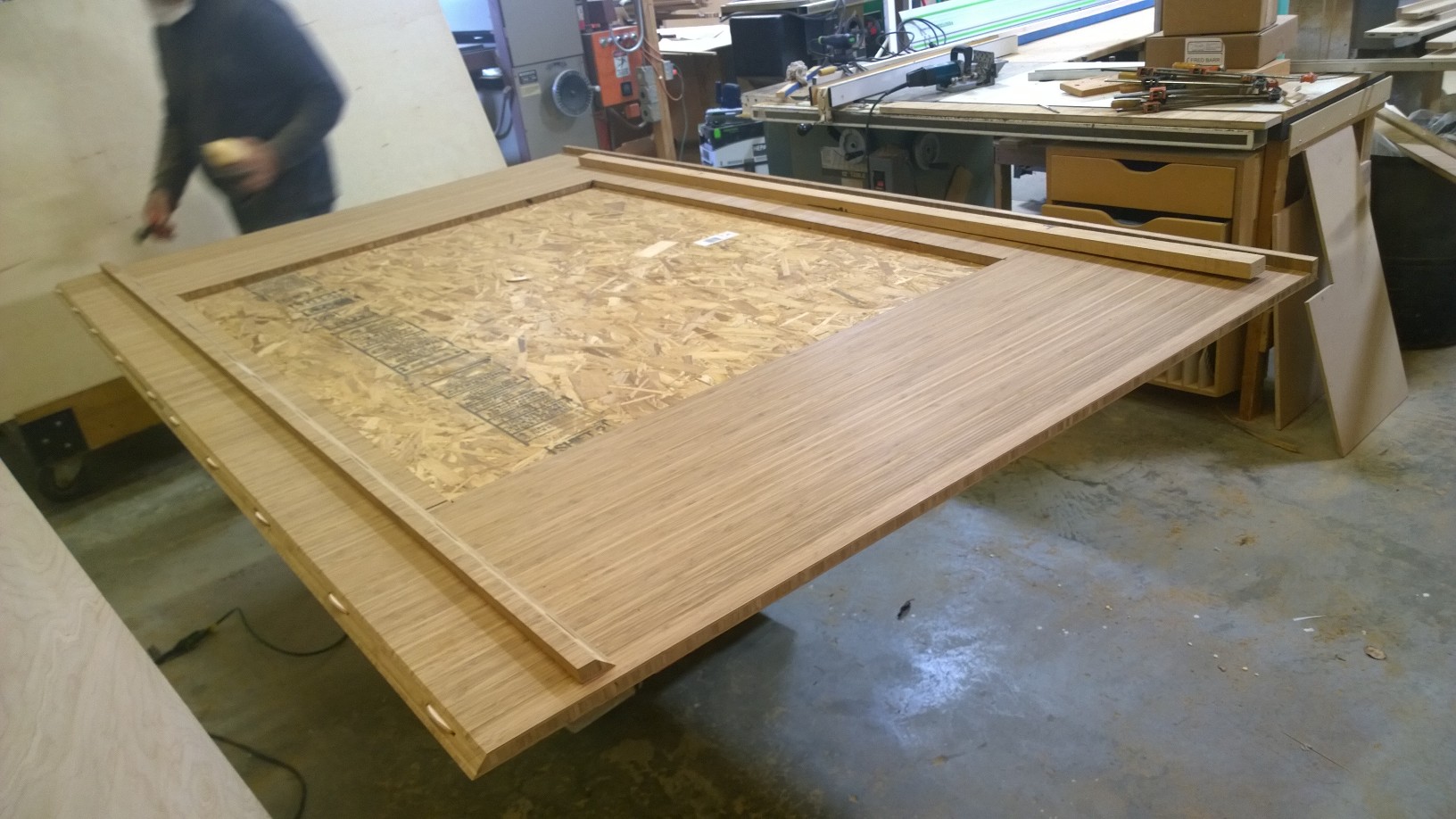

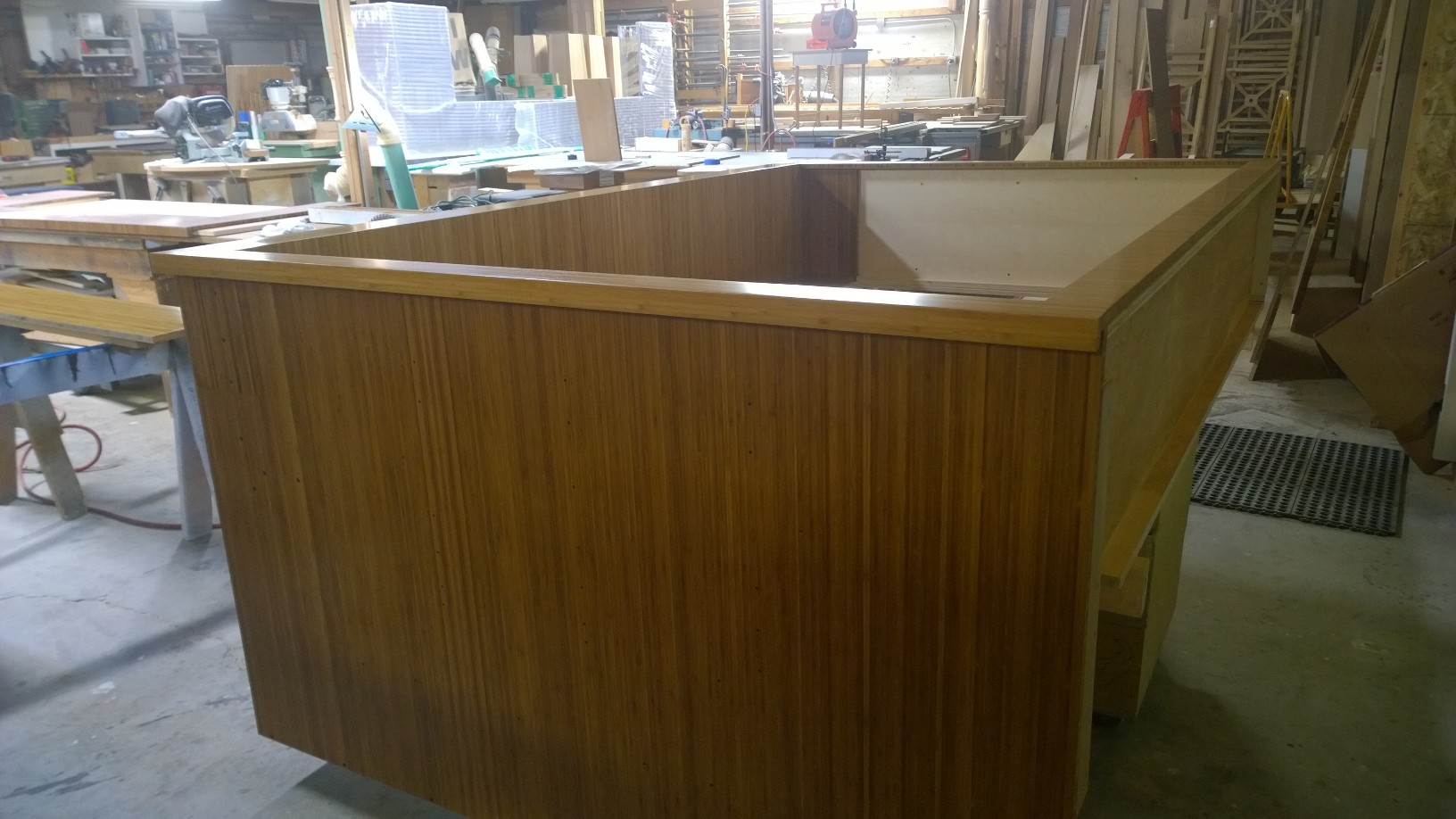

The mailbox Surround is coming together nicely
This shows the build-out behind the Q Detail Panel

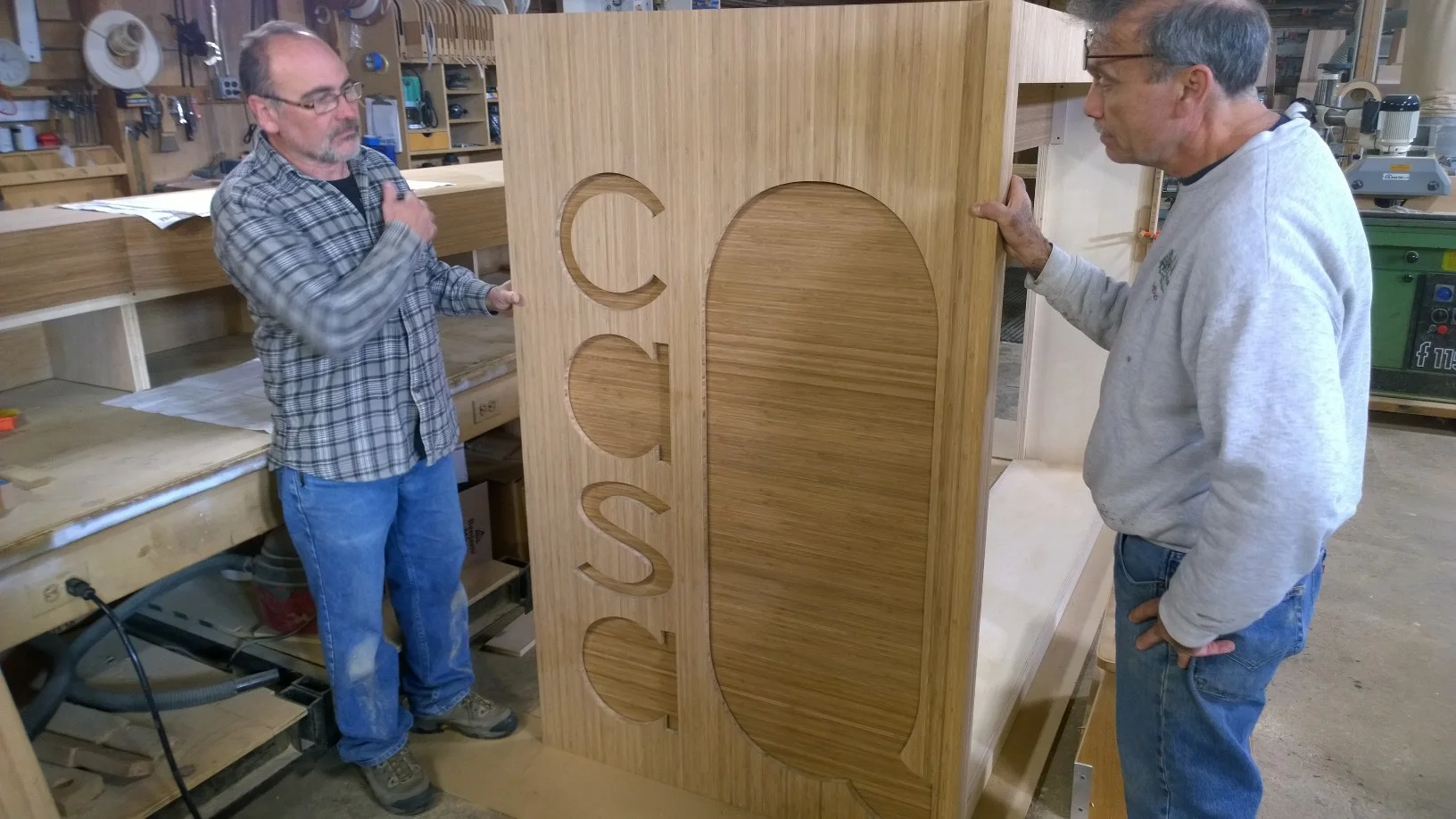

Dry-Fit of the Q Panel with Chocolate Horizontal Grain Backer

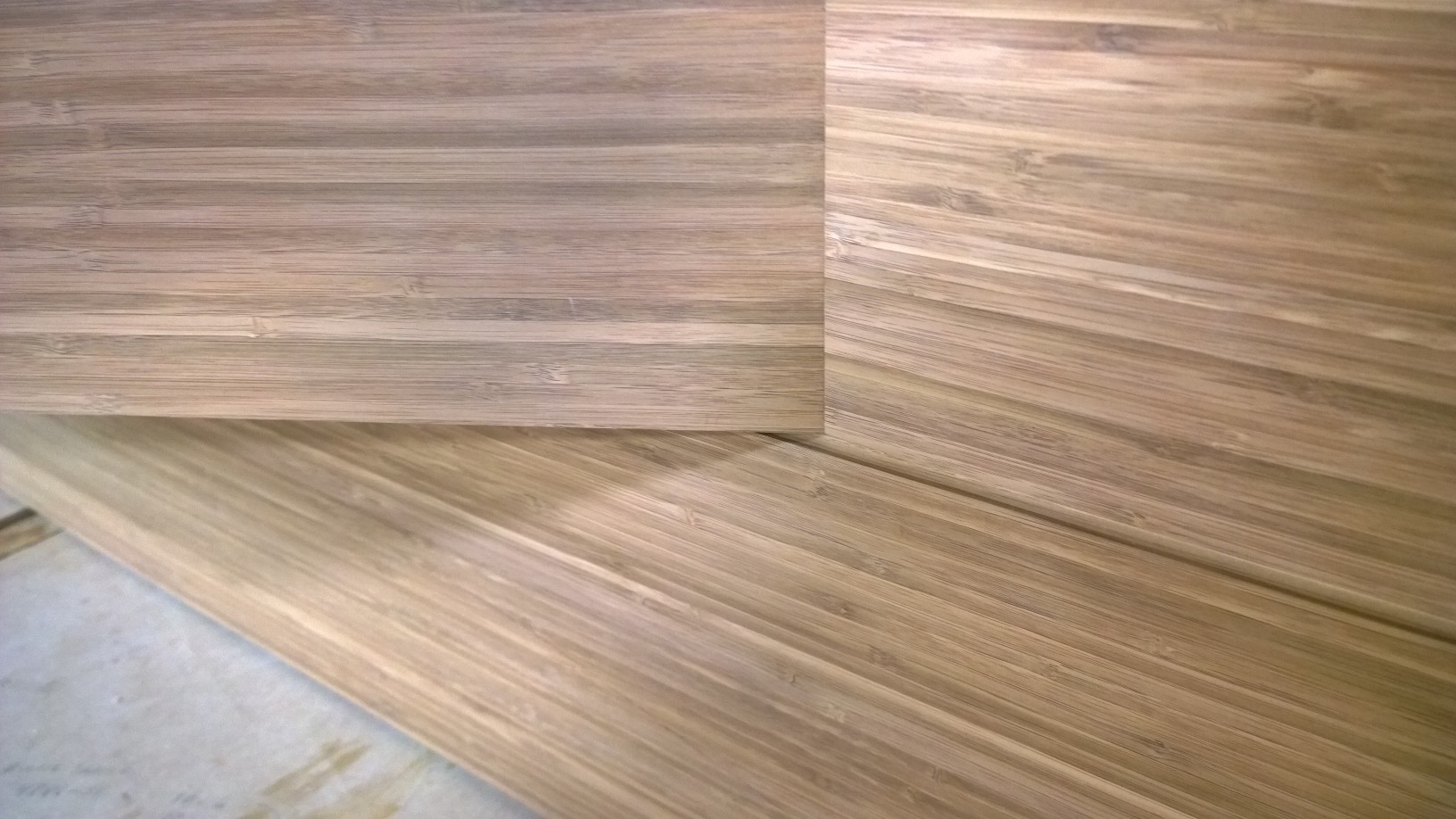

Just a couple of Samples - The finish really brings out the color difference in the bamboo.
In the first Casa Q post we focused on the CNC Detail work. Later in the week we started fabrication on the 17' bench that will be in the 1st floor lobby. The Bench Top and Face were fabricated first because they require very precise lock miters at inside and outside corners. The lower portion is a straight run and will be fabricated towards the end of the project.
The bench is fabricated from 3/4" Vertical Grain Chocolate Plyboo over a 3/4" FSC Birch Plywood Frame.
You can learn more about FSC & Plyboo by visiting theses websites - or - clicking the links above.
https://us.fsc.org/
http://www.plyboo.com/
Bench Top Profile Laid Out in Birch Plywood

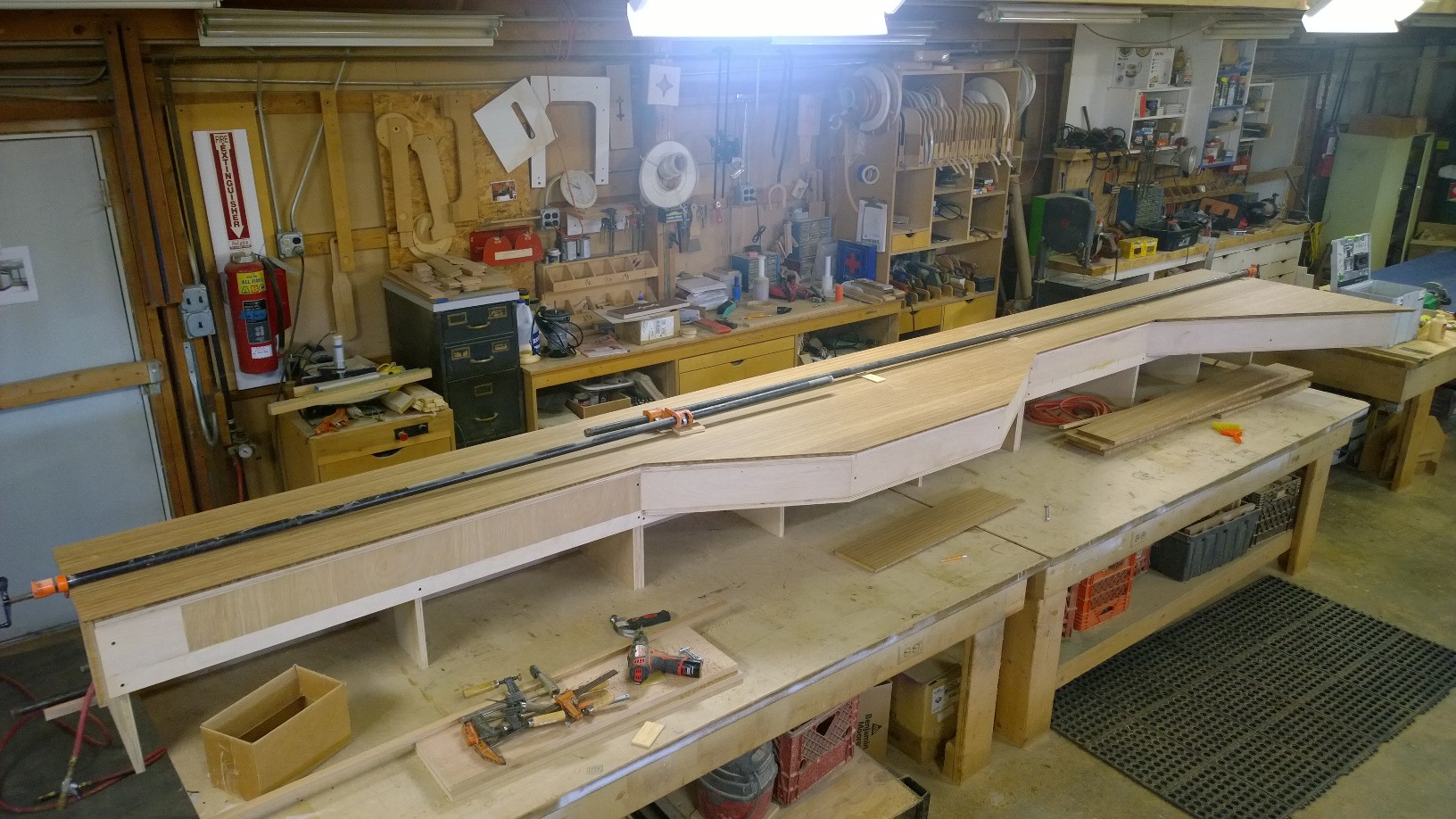

Bench Frame Assembled
Don Lays out the angle cuts
Cleaning Up The Edges

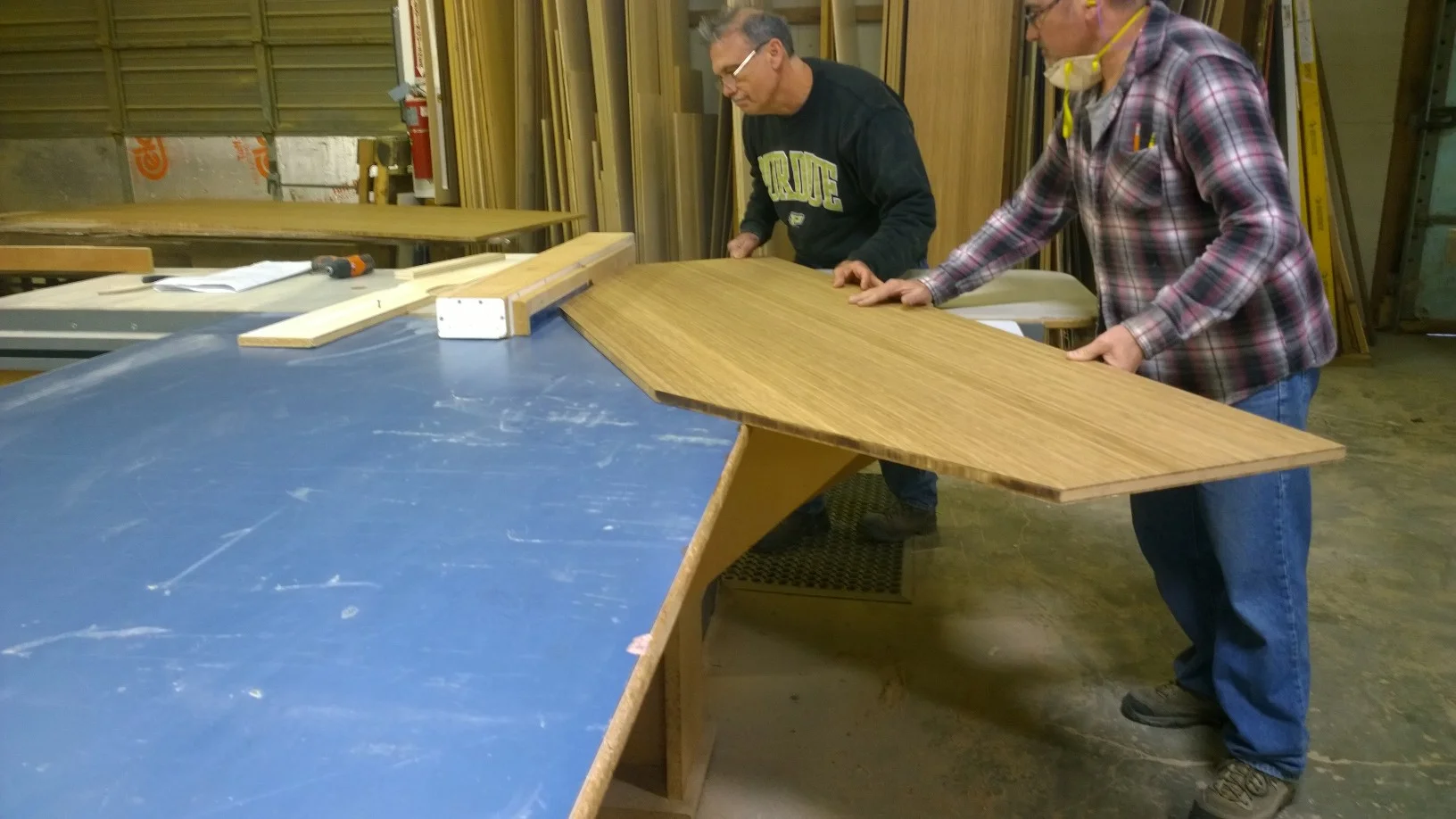

Top Pieced Cut and Mocked-Up

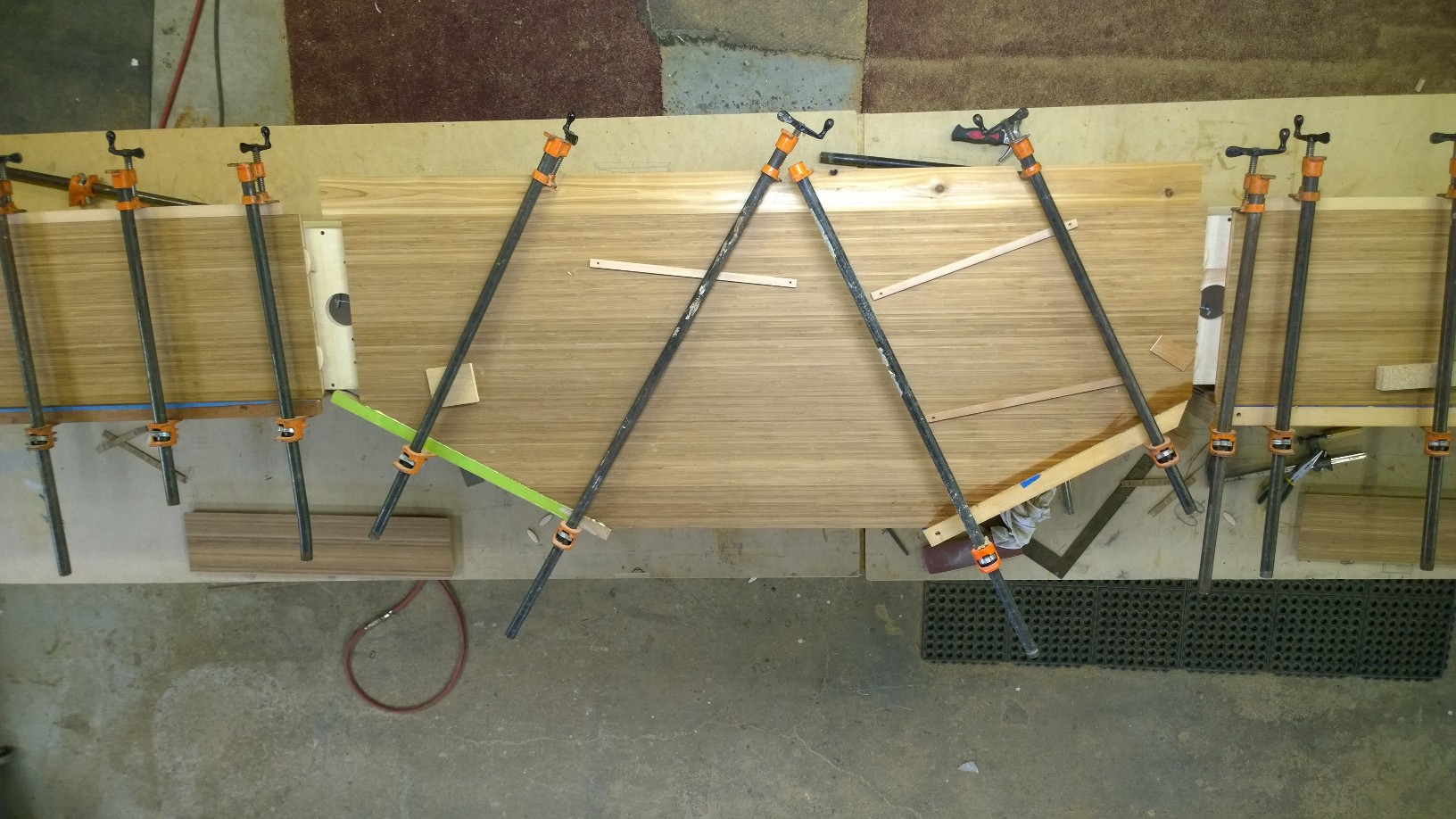

Clamping the Top Together
Checking Our Lock Miters at the Bench Face
Checking Lock Miters & Joint at Inside Angle of Bench Face

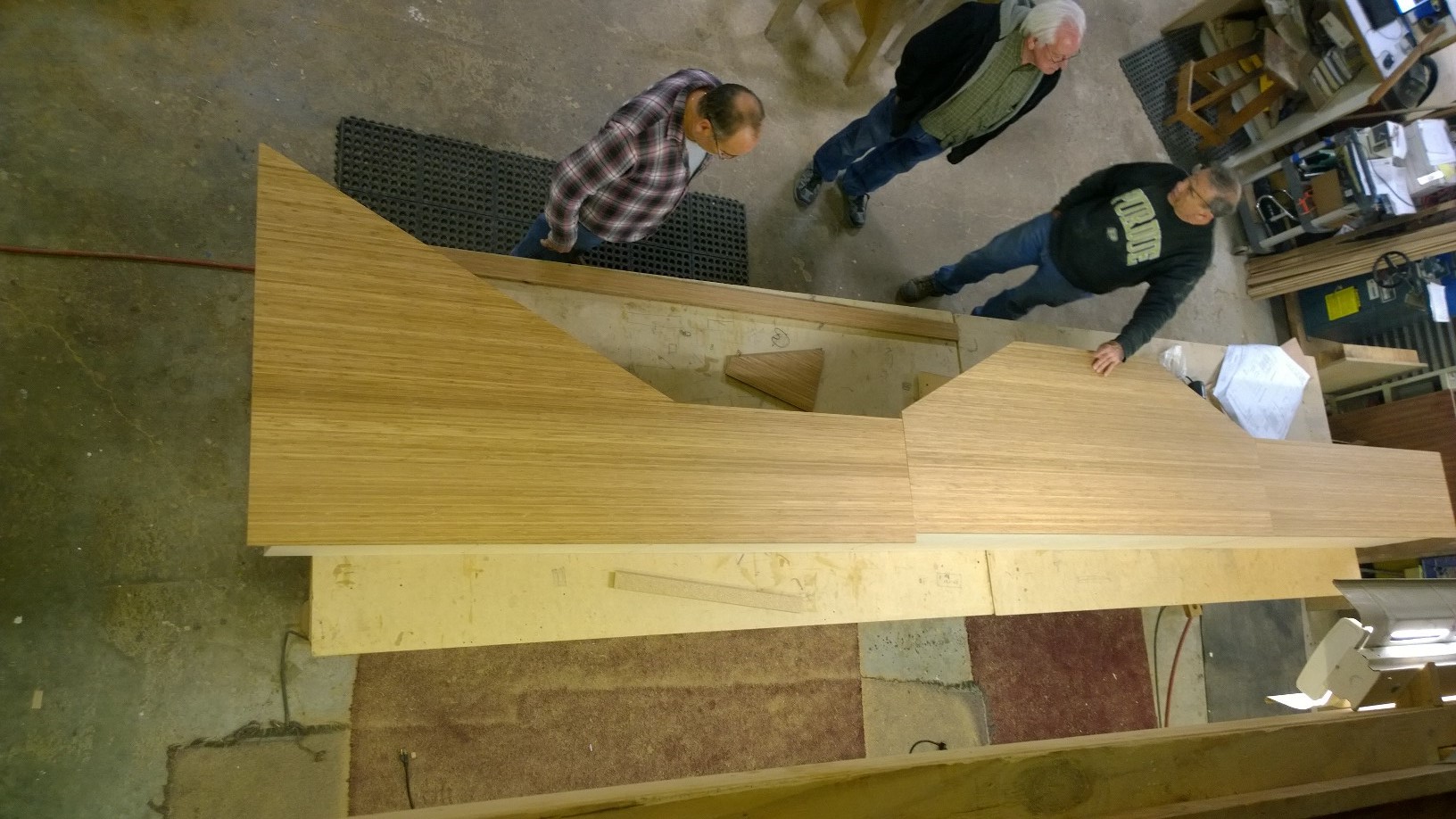

Dry fit of Face Pieces
Clamps at the 1st assembled section

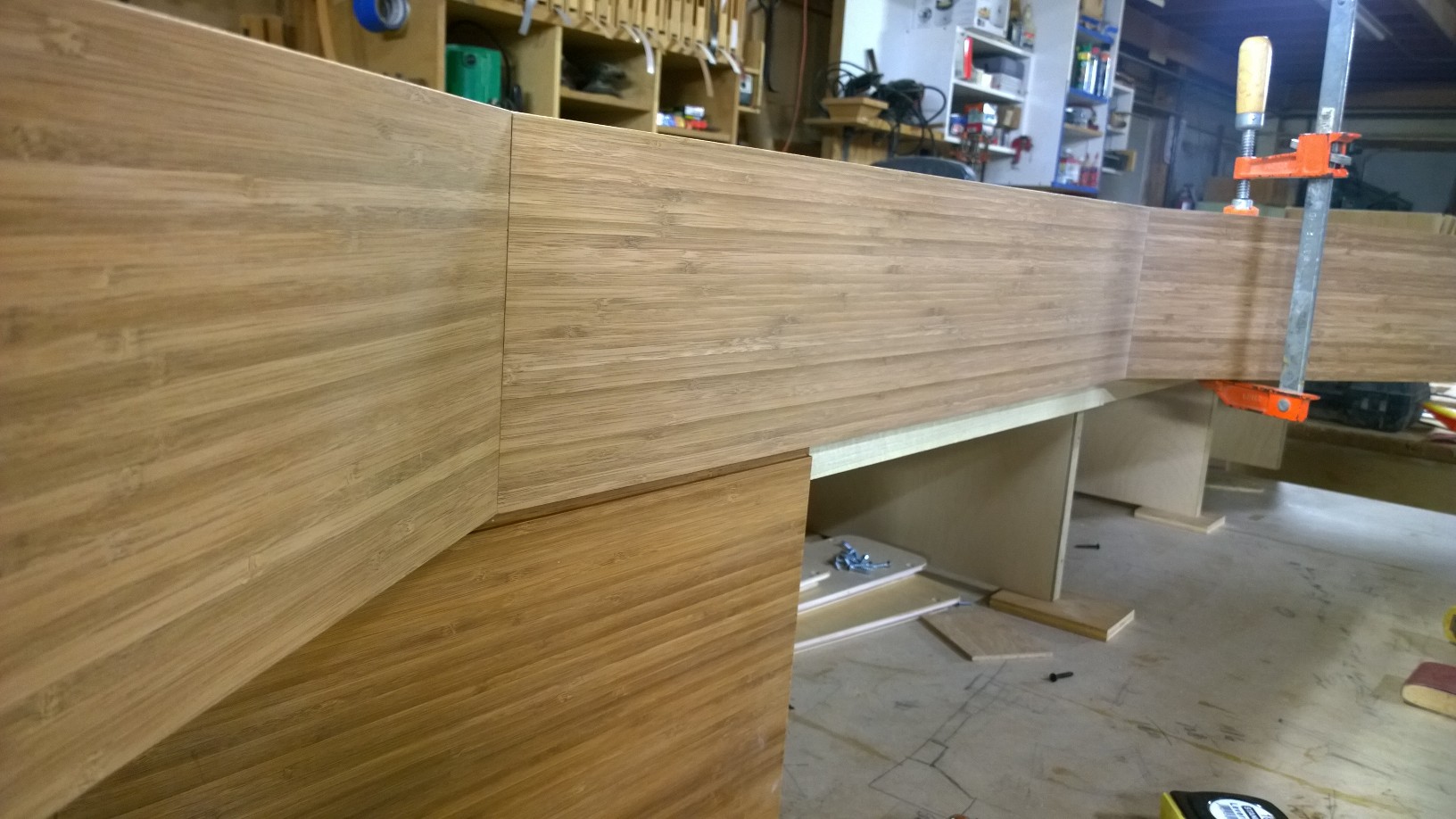

Clamps holding the face piece in place as it dries
The large angled piece glued and clamped seperatly
The last piece to get clamped in place.
Bench Top Complete - The Lower portion will be cut at a later time.
